CYCLES

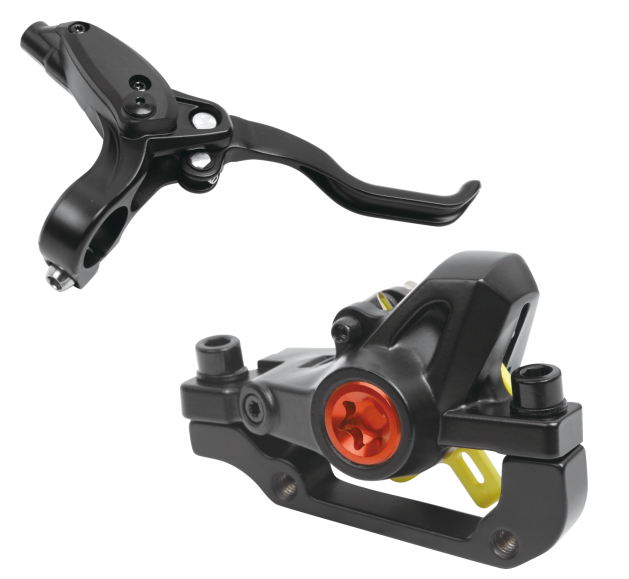

Master Cylinder- 863-M200-002
| Pistion Size(mm) | φ10 |
| Pistion Area(mm²) | 78.5 |
| Hydraulic Threads | M8×0.75-6H |
| Installation aperture of handlebars(mm) | φ22.3 |
| Maximum working pressure(MPa) | 6.9 |
| Handgrip Span(mm) | 93 |
| Length of handgrip(mm) | 81.9 |
| Main Cylinder Material | ADC12 |
| Handgrip Material | ADC6 |
| Oil Cap Material | 高温尼龙+GF35 |
| Master Cylinder Color |
